8G-10FJX45

8G-10FJX45

Log in for pricing

(No reviews yet) Write a Review
SKU:
G25175-0810
UPC:
710346315
Hose ID (mm):
12.7
Hose ID (in):
0.5
Trademark:
MegaCrimp Couplings
Term Dash Size:
10
Hose Recommended:
Various ODs on Both 1-Wire & 2-Wire Braid Hyd Hose
Seal Type:
Mated Angle
H2 Nut Hex (mm):
27
Mating Angle:
37
H2 Nut Hex (in):
1.063
C Cutoff (in):
2.339
L Length (in):
3.811
T Drop (in):
0.63
Nose Seat:
Standard
Swivel:
YES
End Size 1:
10
End Type 1:
FJX
Thread Size 1:
7/8-14
Hose Dash Size:
8

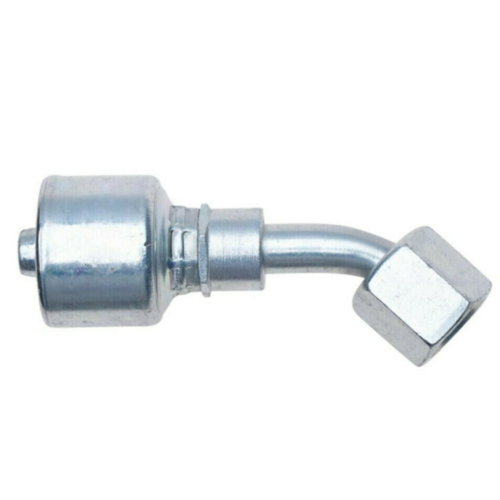

The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. Robust “bite-the-wire” crimp. Tested to an industry-leading 1 million impulse cycles. Environmentally-friendly TuffCoat™ plating for 347% better corrosion resistance SAE Standard. Popular thread styles also available with TuffCoat™ Xtreme™ plating for 583% better corrosion resistance than the SAE standard.
!
